Lift and slide mechanics

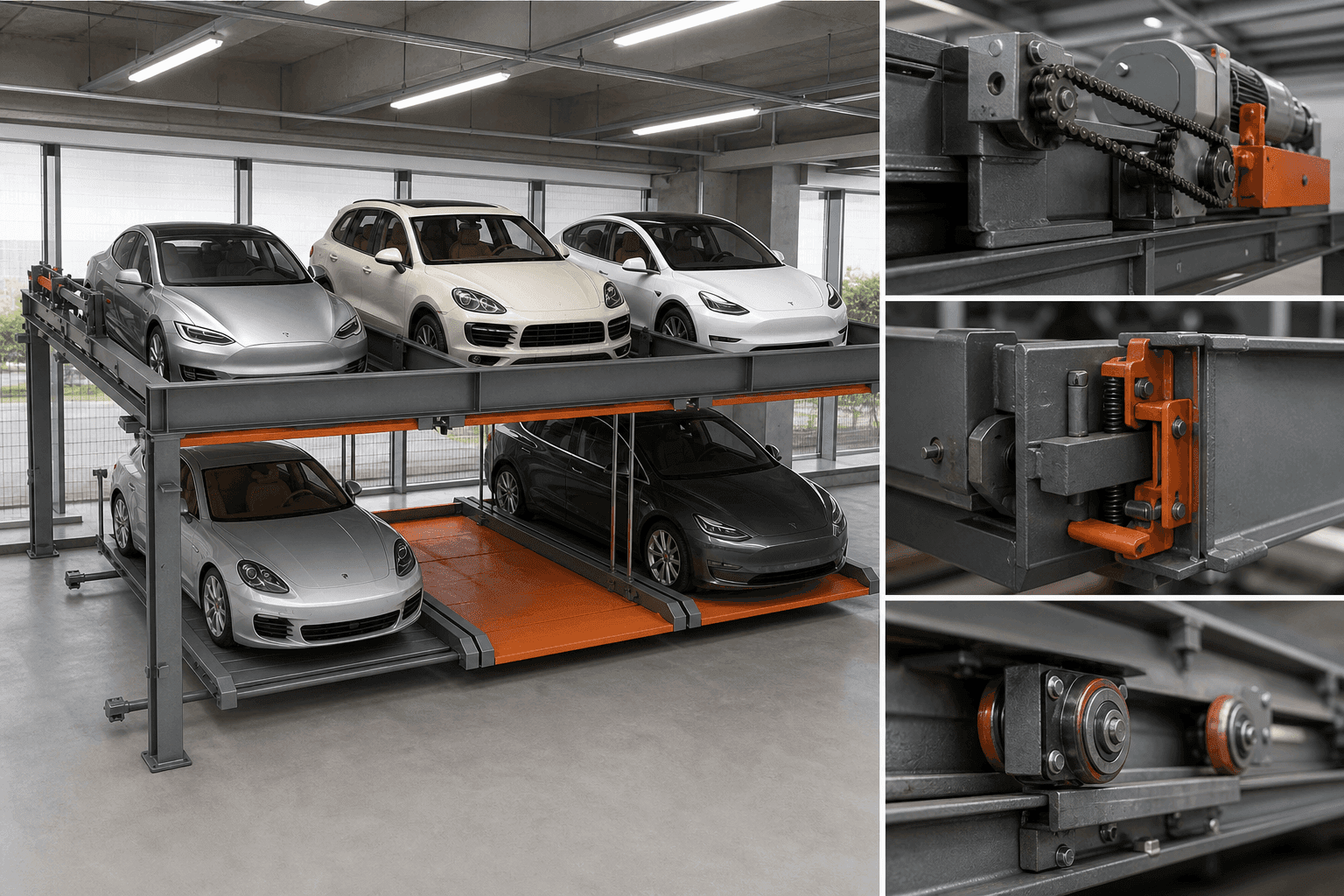

Two-level puzzle parking system
The movement vacancy, lifting platforms and horizontal transfer rails are shown with their drive and safety components.
Lift-slide puzzle systems
Two-Level Lift-Slide Parking System
Two-Level Lift-Slide Parking System is a semi-automatic parking system, developed by Yifeng Yongsheng. The parking space selected is moved to the desired position by means of an automatic control system, and the parking spaces can be shifted vertically or horizontally. Entrance level platforms move horizontally and upper level platforms move vertically, with always one platform less at the entrance level. By swiping the card or input the code, the system automatically moves the platforms in the desired position. To collect a car parked on the upper level, the platforms at the entrance level will first move to one side to provide an empty space into which the required platform is lowered.
YFYS engineered parking systems2Levels
2500kg / 2000kgLifting capacity
2050mm / 1550mmAvailable car height
System overview
Engineered for practical parking capacity.
Two-Level Lift-Slide Parking System is a semi-automatic parking system, developed by Yifeng Yongsheng. The parking space selected is moved to the desired position by means of an automatic control system, and the parking spaces can be shifted vertically or horizontally. Entrance level platforms move horizontally and upper level platforms move vertically, with always one platform less at the entrance level. By swiping the card or input the code, the system automatically moves the platforms in the desired position. To collect a car parked on the upper level, the platforms at the entrance level will first move to one side to provide an empty space into which the required platform is lowered.
Product highlights
Two-Level Lift-Slide Parking System is a semi-automatic parking system, developed by Yifeng Yongsheng. The parking space selected is moved to the desired position by means of an automatic control system, and the parking spaces can be shifted vertically or horizontally. Entrance level platforms move horizontally and upper level platforms move vertically, with always one platform less at the entrance level. By swiping the card or input the code, the system automatically moves the platforms in the desired position. To collect a car parked on the upper level, the platforms at the entrance level will first move to one side to provide an empty space into which the required platform is lowered.
Two-Level Lift-Slide Parking System mobilizes the existing space by using it the best possible way. It can be used to park two cars on top of each other, and offers space from 5 to 29 cars. A driving lane in front of the full width of the system is required to access all parking spaces, and one vacant space on the entry level allows for horizontal or vertical shifting of all platforms. The access level can be secured by doors which can only be opened once the shifting process is completed. Therefore, cars are protected against theft and vandalism.
Q&A： 1. Could Two-Level Lift-Slide Parking System be used outdoor? Yes. Firstly, the finishing of structure is zinc coating with a better water-proof. Secondly, extra covers could be installed to prevent from rain, snow, and heavy wind. 2. Could Two-Level Lift-Slide Parking System be used for parking SUV? Two-Level Lift-Slide Parking System could be customized to t for SUV, for detailed requirements please contact Yifeng Yongsheng sales. 3. What’s the voltage requirement? The standard voltage should be 380v, 3P. Some local voltages could be customized according to clients' request. 4. Can this product still operate if electricity failure happens? No, if electricity failure happens often in your place, you have to have a back-up generator to supply power. 5. Can Two-Level Lift-Slide Parking System installed by customer themselves? If you’re new for our Two-Level Lift-Slide Parking System, we recommend sending our engineer to guide the installation.
A new comprehensive introduction of Two-Level Lift-Slide Parking System
Standard galvanizing applied for daily indoor use
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Two-Level Lift-Slide Parking System
- Levels
- 2
- Lifting capacity
- 2500kg / 2000kg
- Available car length
- 5000mm
- Available car width
- 1850mm
- Available car height
- 2050mm / 1550mm
- Power pack
- 4Kw hydraulic pump
- Available voltage of power supply
- 200V-480V, 3 Phase, 50/60Hz
- Operation mode
- Code & ID card
- Operation voltage
- 24V
- Safety lock
- Anti-falling frame
- Rising / descending time
- <35s
- Finishing
- Powdering coating
Product engineering
Two-Level Lift-Slide Parking System, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
