Lift and slide mechanics

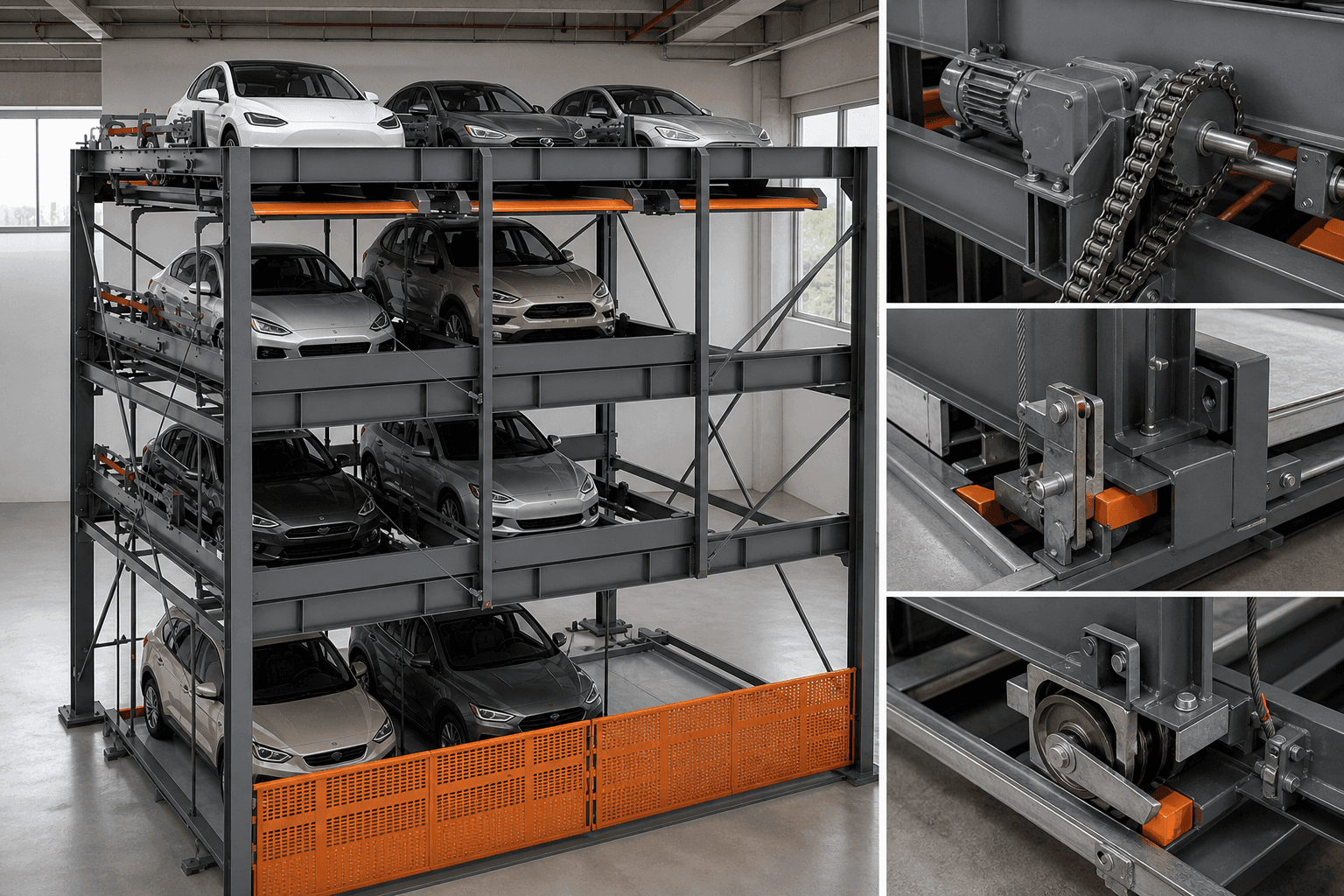

Four-level puzzle parking matrix
The full parking grid is paired with its geared lift drive, platform safety latch and precision transfer wheel assembly.
Lift-slide puzzle systems
Four-Level Lift-Slide Parking System
Four-Level Lift-Slide Parking System is a kind of automatic parking equipment. It is suitable for both commercial and residential parking purposes. It moves vertically & horizontally with the platform to park & retrieve car freely. Four-Level Lift-Slide Parking System of product can be combined together with Yifeng Yongsheng PFP series of product toincrease parking spaces. It is driven by hydraulic.
YFYS engineered parking systems4Levels
2500kg / 2000kgLifting capacity
2050mm / 1550mmAvailable car height
System overview
Engineered for practical parking capacity.
Four-Level Lift-Slide Parking System is a kind of automatic parking equipment. It is suitable for both commercial and residential parking purposes. It moves vertically & horizontally with the platform to park & retrieve car freely. Four-Level Lift-Slide Parking System of product can be combined together with Yifeng Yongsheng PFP series of product toincrease parking spaces. It is driven by hydraulic.
Product highlights
Four-Level Lift-Slide Parking System is a kind of automatic parking equipment. It is suitable for both commercial and residential parking purposes. It moves vertically & horizontally with the platform to park & retrieve car freely. Four-Level Lift-Slide Parking System of product can be combined together with Yifeng Yongsheng PFP series of product toincrease parking spaces. It is driven by hydraulic.
Yes. Firstly, the finishing of structure is zinc coating with a better water-proof. Secondly, extra covers could be installed to prevent
Four-Level Lift-Slide Parking System could be customized to t for SUV, for detailed requirements please contact Yifeng Yongsheng sales.
The standard voltage should be 380v, 3P. Some local voltages could be customized according to clients' request.
4. Can this product still operate if electricity failure happens?
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Four-Level Lift-Slide Parking System
- Levels
- 4
- Lifting capacity
- 2500kg / 2000kg
- Available car length
- 5000mm
- Available car width
- 1850mm
- Available car height
- 2050mm / 1550mm
- Power pack
- 5.5Kw hydraulic pump
- Available voltage of power supply
- 200V-480V, 3 Phase, 50/60Hz
- Operation mode
- Code & ID card
- Operation voltage
- 24V
- Safety lock
- Anti-falling frame
- Rising / descending time
- <55s
- Finishing
- Powdering coating
Product engineering
Four-Level Lift-Slide Parking System, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
Explore project applicationsProject resources
Confirm the system against your site conditions.
