Pit installation

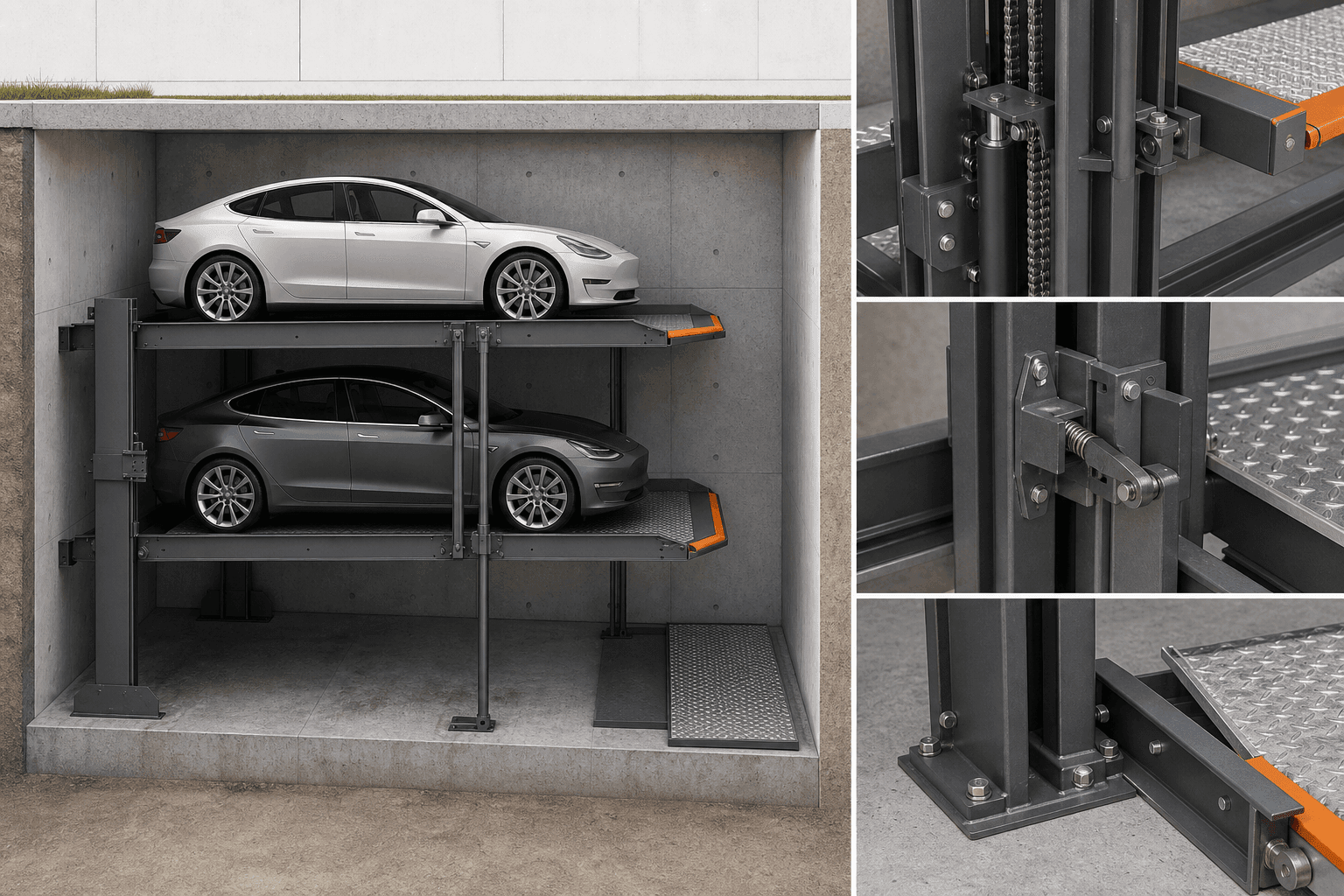

Three-level underground parking lift
The sectional installation explains the multiple platform levels, chain-hydraulic drive, anti-fall lock and pit guide structure.
Pit parking solutions
Tilting Pit Parking System
Though it’s an outstanding idea to go in pit, there’re cases that ceiling height might cause a trouble. By tilting the platforms, Tilting Pit Parking System provides maximum space saving without much compromise in comfort. Their well-thought-out design, reliability and ease of operation are the solution for rooms with a shortage of free space. Large capacity of 2700kg is given to handle large and heavy vehicles.
YFYS engineered parking systemsTilting Pit Parking SystemModel
2Vehicles per unit
2700kgLifting capacity
1750mmPit depth
System overview
Engineered for practical parking capacity.
Though it’s an outstanding idea to go in pit, there’re cases that ceiling height might cause a trouble. By tilting the platforms, Tilting Pit Parking System provides maximum space saving without much compromise in comfort. Their well-thought-out design, reliability and ease of operation are the solution for rooms with a shortage of free space. Large capacity of 2700kg is given to handle large and heavy vehicles.
Product highlights
Though it’s an outstanding idea to go in pit, there’re cases that ceiling height might cause a trouble. By tilting the platforms, Tilting Pit Parking System provides maximum space saving without much compromise in comfort. Their well-thought-out design, reliability and ease of operation are the solution for rooms with a shortage of free space. Large capacity of 2700kg is given to handle large and heavy vehicles.
For independent parking
Superstructural design, self-standing
Reduced installation height, 3100mm only
Single unit for 2 cars
Platform load capacity: 2700kg
Platform width: 2300mm as standard, and up to 2500mm
Pit width: 2550mm as standard, and up to 2750mm
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Tilting Pit Parking System
- Vehicles per unit
- 2
- Lifting capacity
- 2700kg
- Pit depth
- 1750mm
- Usable width
- 2300mm-2500mm
- Available car height
- 1500-1550mm
- Power pack
- 5.5Kw hydraulic pump
- Available voltage of power supply
- 200V-480V, 3 Phase, 50/60Hz
- Operation mode
- Key switch
- Operation voltage
- 24V
- Finishing
- Powdering coating
Product engineering
Tilting Pit Parking System, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
