Pit installation

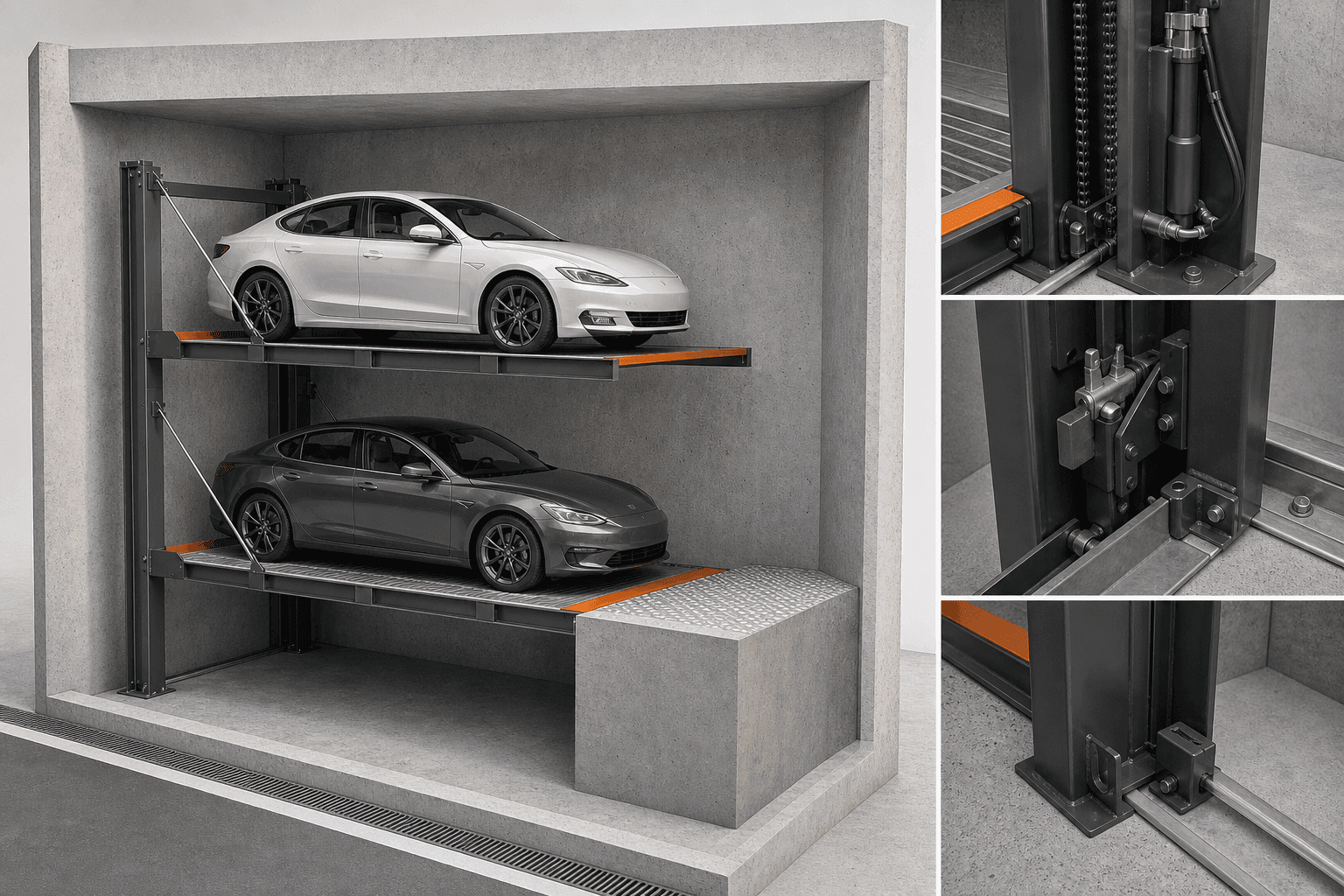

Compact pit parking platform
The sectional view focuses on the hydraulic-chain drive, positive platform lock and accurate interface with the structural pit.
Pit parking solutions
Cantilever Pit Parking System
With our cantilever parking system with pit, we offer the perfect parking solution for two sedans. The magic is that when it comes to convenience and easy access to your parking space, the system offers independent parking. At the same time, the absence of support posts on the sides results in a smaller occupied parking space, providing more space for additional parking spaces, super-wide platform, as well as additional comfort when getting in and out of the car
YFYS engineered parking systemsCantilever Pit Parking SystemModel
2Vehicles per unit
2000kgLifting capacity
1800mm-2200mmPit depth
System overview
Engineered for practical parking capacity.
With our cantilever parking system with pit, we offer the perfect parking solution for two sedans. The magic is that when it comes to convenience and easy access to your parking space, the system offers independent parking. At the same time, the absence of support posts on the sides results in a smaller occupied parking space, providing more space for additional parking spaces, super-wide platform, as well as additional comfort when getting in and out of the car
Product highlights
With our cantilever parking system with pit, we offer the perfect parking solution for two sedans. The magic is that when it comes to convenience and easy access to your parking space, the system offers independent parking. At the same time, the absence of support posts on the sides results in a smaller occupied parking space, providing more space for additional parking spaces, super-wide platform, as well as additional comfort when getting in and out of the car
For independent parking
Free car door opening, excellent comfort
Single unit for 2 cars
Platform load capacity: 2000kg
Platform width: 2400mm as standard, and up to 2600mm
Pit width: 2500mm as standard, and up to 2700mm
Pit depth: 2000mm as standard, and variable from 1800mm to 2200mm
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Cantilever Pit Parking System
- Vehicles per unit
- 2
- Lifting capacity
- 2000kg
- Pit depth
- 1800mm-2200mm
- Usable width
- 2400mm-2600mm
- Available car height
- 1700mm
- Available voltage of power supply
- 200V-480V, 3 Phase, 50/60Hz
- Operation mode
- Key switch
- Operation voltage
- 24V
- Finishing
- Powdering coating
Product engineering
Cantilever Pit Parking System, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.

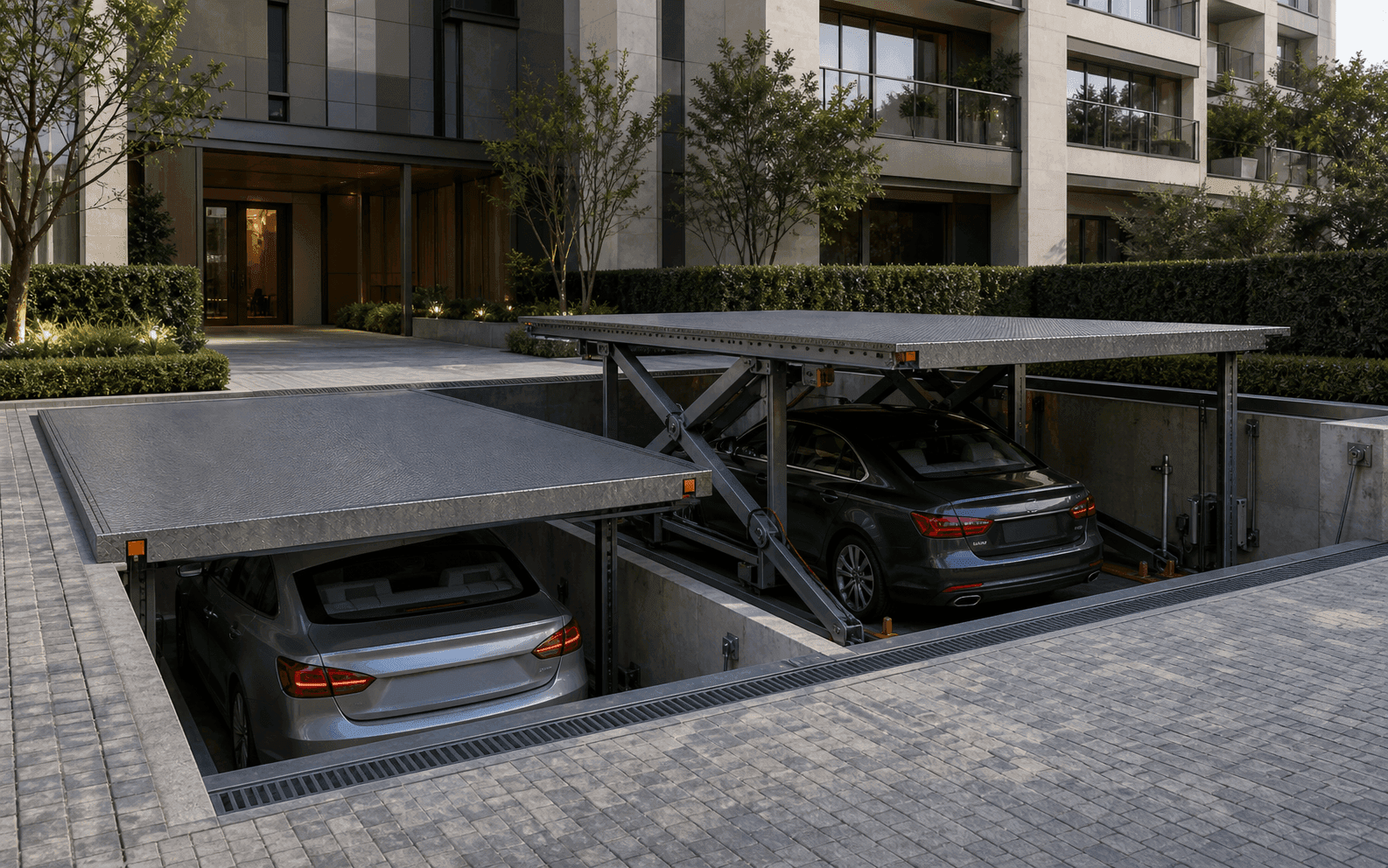

Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
Explore project applicationsProject resources
Confirm the system against your site conditions.
