Two-level parking lifts

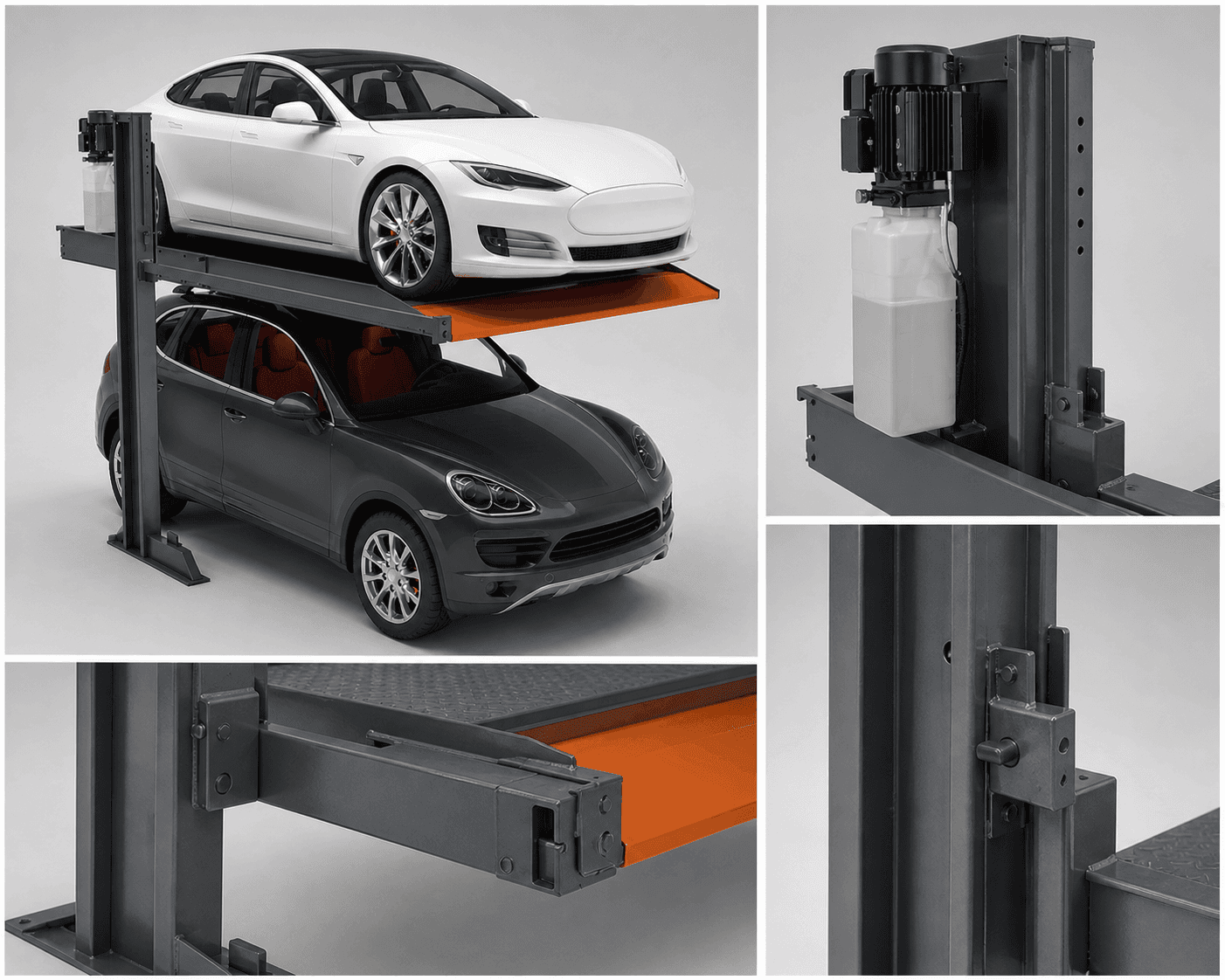

Compact Two-Post Parking Lift

Compact parking that expand the possibilities. With 2 post 2 level parking lift Compact Two-Post Parking Lift, the car storing space does not just acquire new automated equipment, but also there appears a space thought out to every centimeter. From private garages to dealerships and public parking lots, Compact Two-Post Parking Lift parking lifts are the most cost-effective solution for organizing and saving parking space for cars weighing up to 2000kg. Its simplified structural design allows to shorten installation period by approx. 30%.

Get a layout plan Engineering support
Compact Two-Post Parking LiftYFYS engineered parking systems
2700kg /6000lbs / 2300kg /5000lbs / 2000kg/4400lbsLifting capacity
2100mm /6'10" / 2100mm /6'10" / 1850mm /6'1"Lifting height
2100mm /6'10" / 2100mm /6'10" / 2200mm /7'3"Usable platform width

System overview

Engineered for practical parking capacity.

Compact parking that expand the possibilities. With 2 post 2 level parking lift HP1120, the car storing space does not just acquire new automated equipment, but also there appears a space thought out to every centimeter. From private garages to dealerships and public parking lots, HP1120 parking lifts are the most cost-effective solution for organizing and saving parking space for cars weighing up to 2000kg. Its simplified structural design allows to shorten installation period by approx. 30%.

Product highlights

Compact parking that expand the possibilities. With 2 post 2 level parking lift Compact Two-Post Parking Lift, the car storing space does not just acquire new automated equipment, but also there appears a space thought out to every centimeter. From private garages to dealerships and public parking lots, Compact Two-Post Parking Lift parking lifts are the most cost-effective solution for organizing and saving parking space for cars weighing up to 2000kg. Its simplified structural design allows to shorten installation period by approx. 30%.
Vehicle height: up to 1750mm on ground floor
Compact structure design requires minimized installation space
Automatic shut-off when operator releases key switch
Sharing post feature allows tandem installations in minimum space

Technical data

Model specifications.

YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.

Model
Compact Two-Post Parking Lift / Compact Two-Post Parking Lift / Compact Two-Post Parking Lift
Lifting capacity
2700kg /6000lbs / 2300kg /5000lbs / 2000kg/4400lbs
Lifting height
2100mm /6'10" / 2100mm /6'10" / 1850mm /6'1"
Usable platform width
2100mm /6'10" / 2100mm /6'10" / 2200mm /7'3"
Outer width
2547mm /8'4" / 2547mm /8'4" / 2540mm /8'4"
Application
SUV+SUV / SUV+Sedan / Sedan+Sedan
Power pack
2.2Kw
Power supply
100-480V, 50/60Hz
Operation mode
Key switch
Operation voltage
24V / 24V / 220v
Safety lock
Dynamic anti-falling lock / Dynamic anti-falling lock / Positioning lock
Lock release
Electric auto release
Lifting time
<55s / <55s / <35s
Finishing
Powdering coating
Two-level parking lifts application

Application planning

Designed around the site, vehicle, and operating model.

Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
