Engineering overview

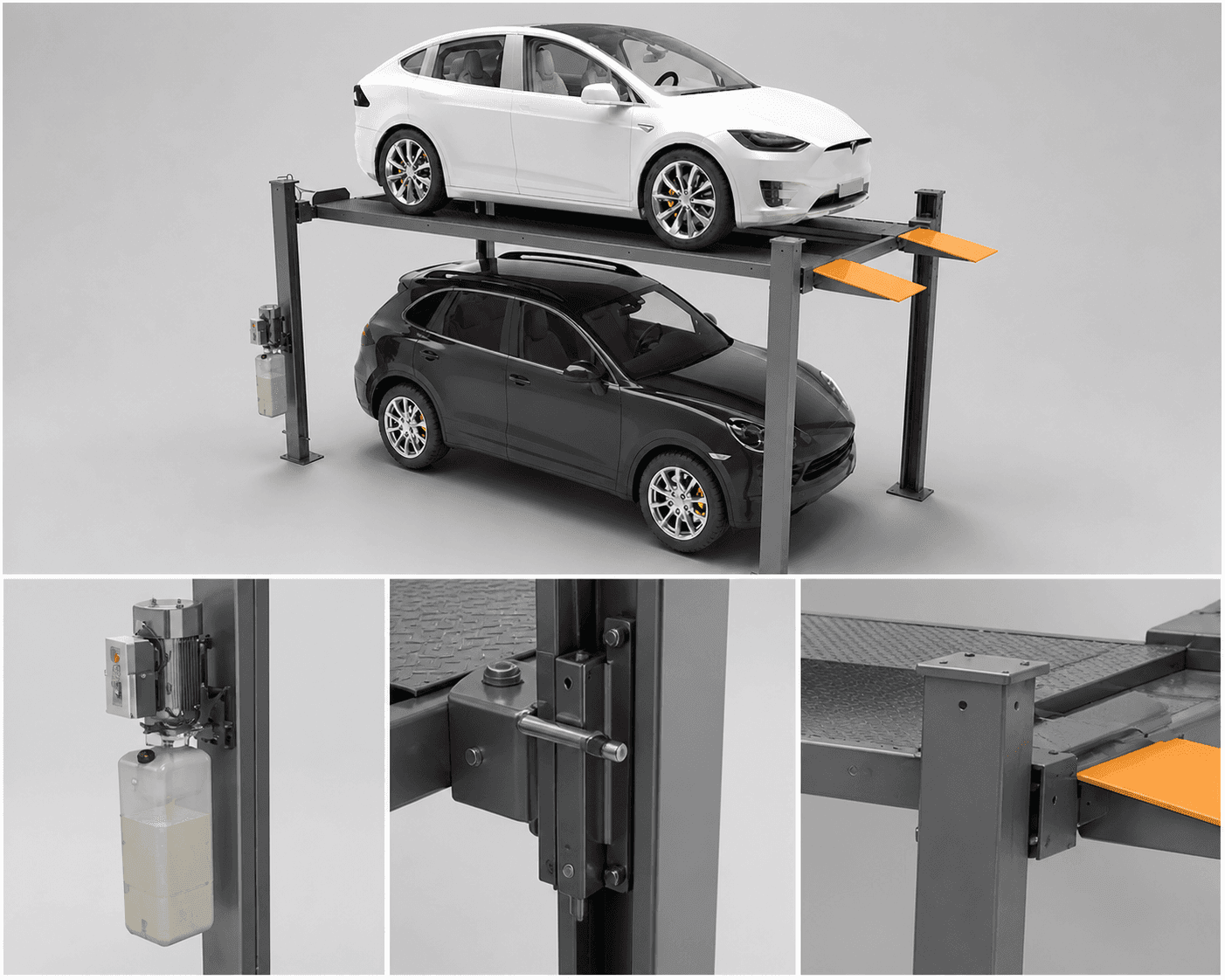

Four-post parking and storage lift
The freestanding system is presented with a compact power unit, mechanical height lock and reinforced platform support.
Two-level parking lifts
Four-Post Service and Storage Lift
A universal solution for simple car service and storage of heavy-duty SUVs that primarily designed for home use. They share the key features of easy installation and manipulation, reliable manual unlock system, and simplified runway design. By providing two parking spaces on top of each other, this parking lift can be used for both parking and servicing. As a valet parking equipment, user needs to clear the ground level to get the higher level car down.
YFYS engineered parking systems3600kg / 3600kgLifting capacity
1800mm / 2100mmLifting height
2100mm / 2100mmUsable platform width
System overview
Engineered for practical parking capacity.
A universal solution for simple car service and storage of heavy-duty SUVs that primarily designed for home use. They share the key features of easy installation and manipulation, reliable manual unlock system, and simplified runway design. By providing two parking spaces on top of each other, this parking lift can be used for both parking and servicing. As a valet parking equipment, user needs to clear the ground level to get the higher level car down.
Product highlights
A universal solution for simple car service and storage of heavy-duty SUVs that primarily designed for home use. They share the key features of easy installation and manipulation, reliable manual unlock system, and simplified runway design. By providing two parking spaces on top of each other, this parking lift can be used for both parking and servicing. As a valet parking equipment, user needs to clear the ground level to get the higher level car down.
* Four-Post Service and Storage Lift lifting height is 1800mm, Four-Post Service and Storage Lift-2L lifting height is 2100mm
The rated capacity is 3600kg, available for all kinds of cars
The operation is simpler, the use is safer, and the failure rate is reduced by 50%.
The safety locks can be released automatically when user operate to make the platform down
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Four-Post Service and Storage Lift / Four-Post Service and Storage Lift-2L
- Lifting capacity
- 3600kg / 3600kg
- Lifting height
- 1800mm / 2100mm
- Usable platform width
- 2100mm / 2100mm
- Power pack
- 2.2Kw hydraulic pump / 2.2Kw hydraulic pump
- Available voltage of power supply
- 100V-480V, 1 or 3 Phase, 50/60Hz / 100V-480V, 1 or 3 Phase, 50/60Hz
- Operation mode
- Key switch / Key switch
- Operation voltage
- 24V / 24V
- Safety lock
- Dynamic anti-falling lock / Dynamic anti-falling lock
- Lock release
- Electric auto release / Electric auto release
- Rising / descending time
- <55s / <55s
- Finishing
- Powdering coating / Powder coating
Product engineering
Four-Post Service and Storage Lift, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
Application planning
Designed around the site, vehicle, and operating model.
Equipment selection depends on access rules, clear dimensions, vehicle weights, user volume, and whether each vehicle must remain independently accessible.
Explore project applicationsProject resources
Confirm the system against your site conditions.
