Multi-level heavy-duty vehicle storage

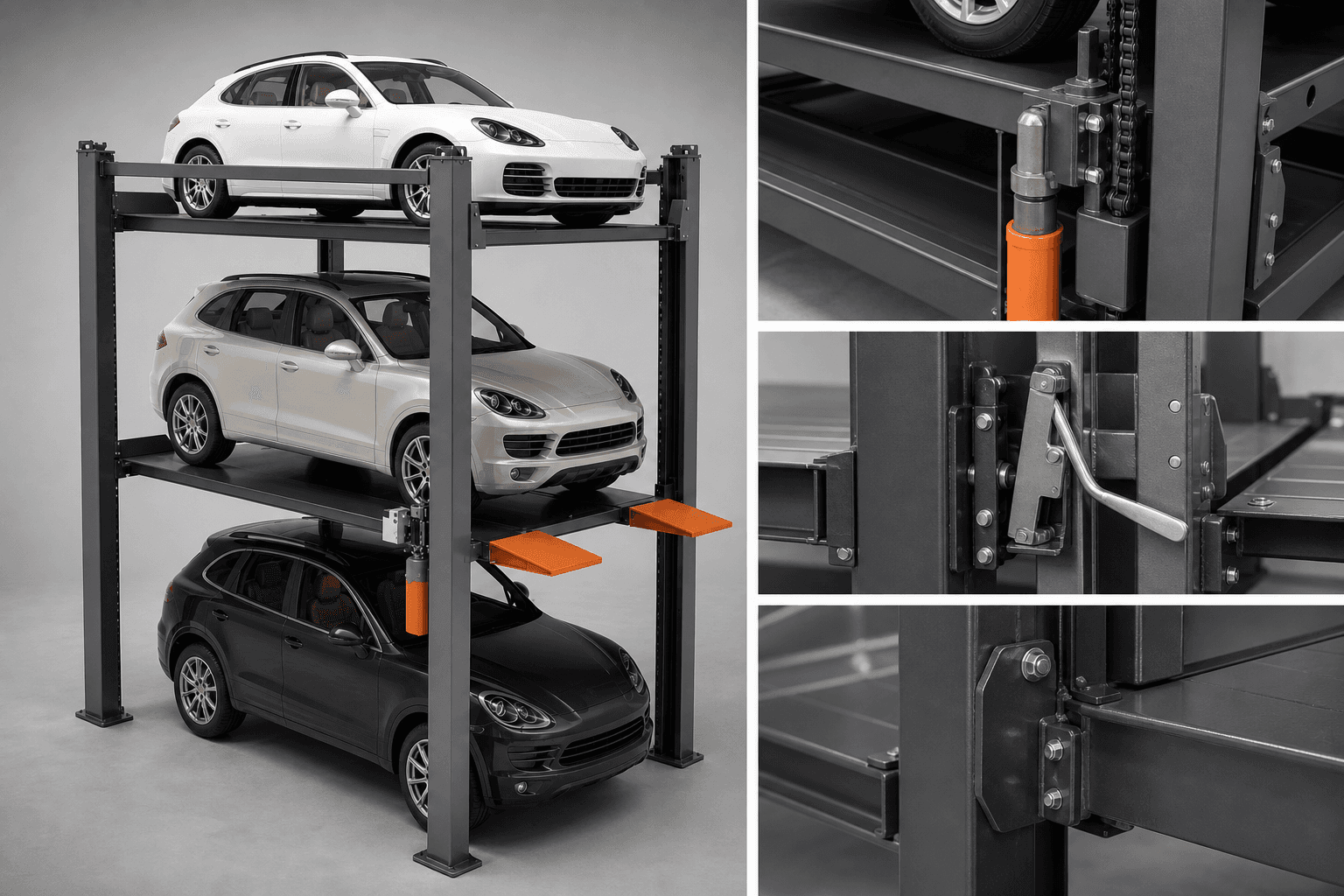

The stacked four-post structure, synchronized chain-hydraulic drive, positive lock and platform connection are shown together.
Car storage lifts
Compact Triple-Level Storage Lift
Compact Triple-Level Storage Lift is a newly developed three-floor system for valet parking or vehicle storage. Its compact structure uses vertically moving platforms driven by a concealed high-strength hydraulic cylinder and wire ropes.
YFYS engineered parking systemsGround floor unlimeted, 2nd floor 2500kg and 3rd floor 2000kg / Ground floor unlimeted, 2nd floor 2500kg and 3rd floor 2000kg / 2000kg per spaceLifting capacity
Ground floor and 2nd floor 2100mm / Ground floor 1850mm, 2nd floor 1600mm / Ground floor 1900mm, 2nd floor 1650mmLifting height
2492mm / 2492mm / 4892mmUsable platform width
System overview
Engineered for practical parking capacity.
Compact Triple-Level Storage Lift is a newly developed three-floor system for valet parking or vehicle storage. Its compact structure uses vertically moving platforms driven by a concealed high-strength hydraulic cylinder and wire ropes.
Product highlights
Compact Triple-Level Storage Lift is a newly developed three-floor system for valet parking or vehicle storage. Its compact structure uses vertically moving platforms driven by a concealed high-strength hydraulic cylinder and wire ropes.
Ground floor unlimited, 2nd floor 2500kg and 3rd floor 2000kg capacity
Entrance width 2492mm, 2nd floor 2100mm and 3rd floor 2200mm driven width
A new comprehensive upgrade of Compact Triple-Level Storage Lift and Compact Triple-Level Storage Lift models
* Compact Triple-Level Storage Lift lifting height is 2100mm, Compact Triple-Level Storage Lift lifting height 1850mm (Ground floor), 2nd floor 1600mm
Technical data
Model specifications.
YFYS engineering reference data. Final project values should be confirmed against the approved layout and local code requirements.
- Model
- Compact Triple-Level Storage Lift / Compact Triple-Level Storage Lift / Compact Triple-Level Storage Lift
- Lifting capacity
- Ground floor unlimeted, 2nd floor 2500kg and 3rd floor 2000kg / Ground floor unlimeted, 2nd floor 2500kg and 3rd floor 2000kg / 2000kg per space
- Lifting height
- Ground floor and 2nd floor 2100mm / Ground floor 1850mm, 2nd floor 1600mm / Ground floor 1900mm, 2nd floor 1650mm
- Usable platform width
- 2492mm / 2492mm / 4892mm
- Power pack
- 3Kw hydraulic pump / 3Kw hydraulic pump / 5.5Kw hydraulic pump
- Available voltage of power supply
- 280V-480V, 1 or 3 Phase, 50/60Hz / 280V-480V, 1 or 3 Phase, 50/60Hz / 280V-480V, 3 Phase, 50/60Hz
- Operation mode
- Key switch / Key switch / Key switch
- Operation voltage
- 24V / 24V / 24V
- Safety lock
- Dynamic anti-falling lock / Dynamic anti-falling lock / Dynamic anti-falling lock
- Lock release
- Semi-auto lock release / Semi-auto lock release / Semi-auto lock release
- Lifting time
- 68s / 60s / 70s
- Finishing
- Powdering coating / Powder coating / Powder coating
Product engineering
Compact Triple-Level Storage Lift, examined in detail.
Original unbranded engineering visuals developed from the product's structural and component references.
